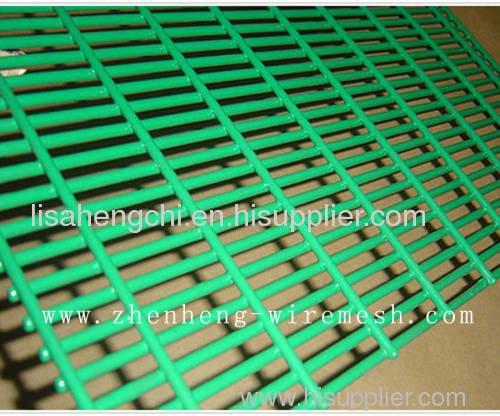

PVC welded wire mesh SX-1 manufacturer from China Yantai Hengchi Imp& Exp Co.,Ltd

Payment Terms:	T/T
Place of Origin:	Shandong, China (Mainland)

Product Detail

Model No.: SX-1

Delivery Date: 7

Means of Transport: Air

Brand Name: SHENGXIANG

Place of Origin: Hebei China (Mainland) Brand Name: SHENGXIANG Model Number: SX-1
Material: Plastic Coated Iron Wire Type: Welded Mesh Appli

welded wire mesh specification


Specification List of Welded Wire Mesh
Opening		Wire Diameter
In inch	In metric unit(mm)	Wire Diameter
1/4" x 1/4"	6.4mm x 6.4mm	22, 23, 24
3/8" x 3/8"	10.6mm x 10.6mm	19, 20, 21, 22
1/2" x 1/2"	12.7mm x 12.7mm	16, 17, 18, 19, 20, 21, 22, 23
5/8" x 5/8"	16mm x 16mm	18, 19, 20, 21,
3/4" x 3/4"	19.1mm x 19.1mm	16, 17, 18, 19, 20, 21
1" x 1/2"	25.4mm x 12.7mm	16, 17, 18, 19, 20, 21
1-1/2" x 1-1/2"	38mm x 38mm	14, 15, 16, 17, 18, 19
1" x 2"	25.4mm x 50.8mm	14, 15, 16
2" x 2"	50.8mm x 50.8mm	12, 13, 14, 15, 16

Galvanized Fencing Mesh
Opening		Wire Diameter
In inch	In metric unit(mm)	Wire Diameter
2" x 3"	50mm x 75mm	2.0mm, 2.5mm, 1.65mm
3" x 3"	75mm x 756mm	2.67mm, 2.41mm, 2.11mm, 1.83mm, 1.65mm
2" x 4"	50mm x 100mm	2.11mm, 2.5mm
4" x 4"	100mm x 100mm	2.0mm, 2.5mm
Technical Note: 1, Standard roll length: 30m;width: 0.5m to 1.8m. 2, Special sizes available at request. 3, Packing: in waterproof paper in rolls. Custom packing available at request.

PVC Coated Welded Mesh
Opening		Wire Diameter
In inch	In metric unit(mm)	Wire Diameter
1/2" x 1/2"	12.7mm x 12.7mm	16, 17, 18, 19, 20, 21
3/4" x 3/4"	19mm x 19mm	16, 17, 18, 19, 20, 21
1" x 1"	25.4mm x 25.4mm	15, 16, 17, 18, 19, 20
Technical Note: 1, Standard roll length: 30m;width: 0.5m to 1.2m. 2, Special sizes available at request. 3, Packing: in waterproof paper in rolls. Custom packing available at request.
